Mitigator e-Series
Harmonic Mitigating Transformer

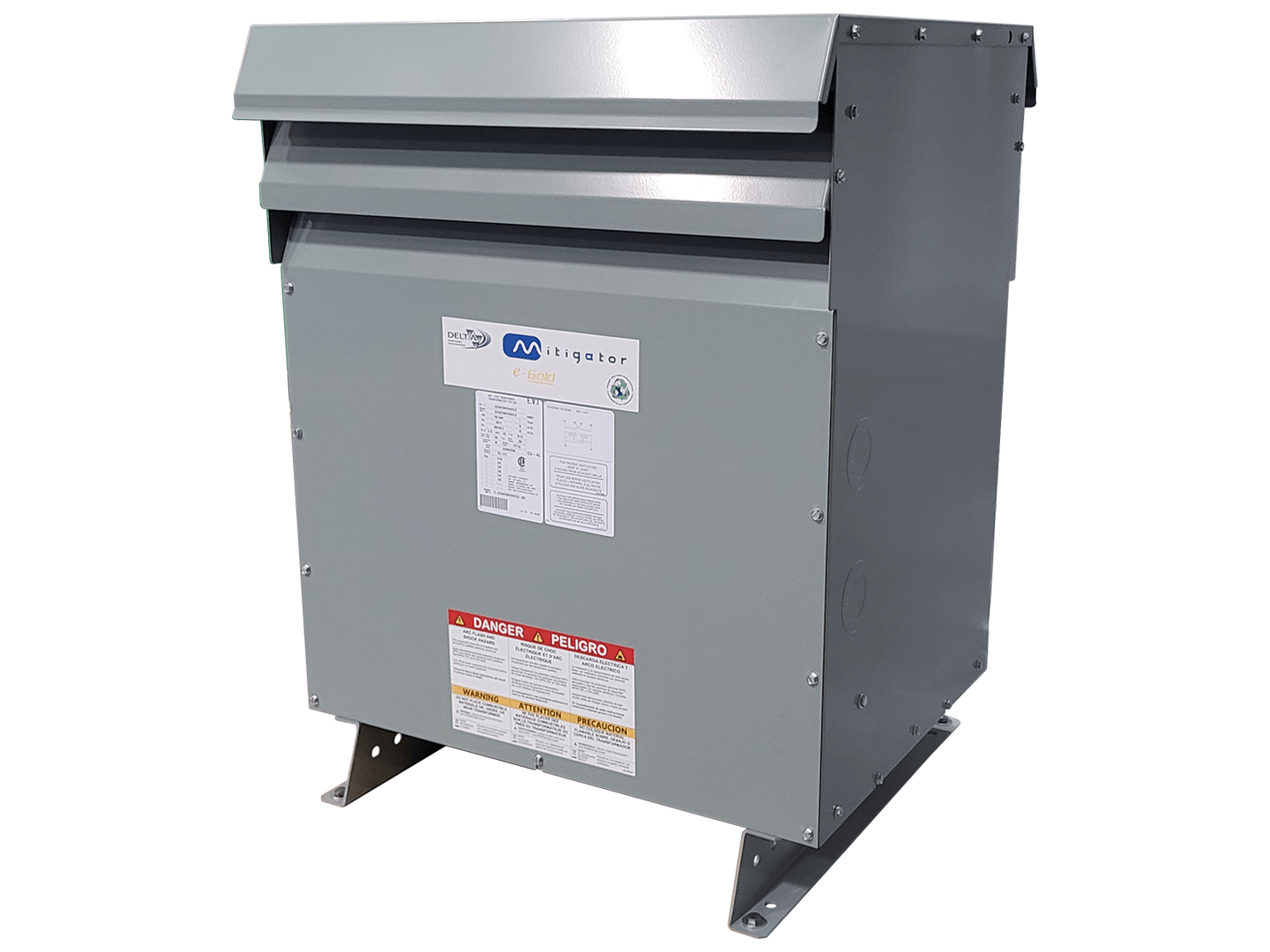

The Mitigator e-Series of harmonic mitigating transformers is designed mitigate harmonics present in typical commercial, institutional, and industrial environments. The field adjustable phase shifting option is first in its class, allowing increased flexibility in the field. All Mitigator units are enhanced by the application of an EVI process, which increases their mechanical strength and environmental protection.
- Efficiency: Meets or exceeds the energy efficiency requirements prescribed by Natural Resources Canada (NRCan) SOR/2018-201, Amd. 14 (NRCan 2019) and the Ontario Green Energy Act.
- Ratings: Three-phase from 15 to 300 kVA
- Frequency: 60 Hz
- Insulation system: 220°C (150°C rise)
- Typical impedance: 4.0 - 6.5% (aluminum windings), 2.5% - 5.0% (copper windings)
- Wall mounting brackets: available for three-phase units up to 45 kVA
- Enclosure type: Type 3R
- Standards: NEMA, CSA, ANSI/IEEE
- Warranty: 10 years
Mitigator e-Silver Series
- Windings: Aluminum.
- Zero Sequence Data: Standard
- Nameplate Impedance: 4.0 – 6.5% (up to 300 kVA)
- Operating Temperature Rise: 150°C
Mitigator e-Gold Series
- Windings: Copper.
- Zero Sequence Data: Less than 0.95% ZS impedance, less than 0.3% ZS reactance
- Nameplate Impedance: 2.5 – 4.0% (up to 75 kVA), 5.0% max (112.5-300 kVA)
- Operating Temperature Rise: 150°C, optional 130°C
Mitigator e-Platinum Series
- Windings: Copper.
- Zero Sequence Data: Less than 0.95% ZS impedance, less than 0.3% ZS reactance
- Nameplate Impedance: 2.5 – 4.0% (up to 75 kVA), 5.0% max (112.5-300 kVA)
- Operating Temperature Rise: 150°C, optional 130°C
